Ceyear Vector Network Analyzers – High-Performance RF, Microwave and Millimeter-Wave Measurement Solutions

Vector Network Analyzers (VNAs) are among the most critical instruments in RF, microwave, millimeter-wave, aerospace, defence, satellite, radar, and wireless communication industries. Modern engineers require VNAs that deliver wide frequency coverage, excellent dynamic range, high measurement accuracy, advanced calibration techniques, and flexible multi-port configurations. The Ceyear Vector Network Analyzer portfolio provides a complete range of measurement solutions designed for research laboratories, manufacturing facilities, universities, aerospace programs, defense systems, and advanced scientific applications.

Complete Portfolio of Vector Network Analyzers

Ceyear offers one of the most comprehensive vector network analyzer portfolios available today, covering applications from low-frequency RF measurements to millimeter-wave and terahertz systems. The portfolio includes:

• Entry and mid-range VNAs
• High-performance microwave VNAs
• Millimeter-wave VNAs
• 4-port and multi-port VNAs
• On-wafer measurement solutions
• THz measurement systems with frequency extenders

Mid-Range Vector Network Analyzers – Ceyear 3657 Series

The Ceyear 3656 Series provides a cost-effective and high-performance solution for RF and microwave component characterization with frequency coverage from 100 kHz up to 9 GHz. These analyzers offer:

• Dynamic range up to 140 dB
• 2-port and 4-port configurations
• High measurement accuracy
• Fast sweep speed
• Comprehensive calibration capabilities
• Excellent price-to-performance ratio

Typical applications include:

• RF filters
• Amplifiers
• Antennas
• Passive components
• Wireless modules
• PCB characterization
• Educational and research laboratories

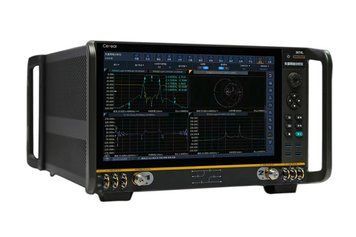

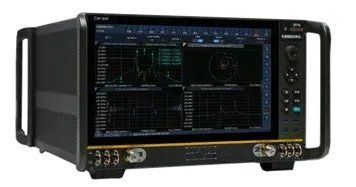

High-Performance Microwave Vector Network Analyzers – Ceyear 3674 Series

The flagship Ceyear 3674 Series provides high-performance vector network analysis with frequency coverage from 10 MHz to 110 GHz, supporting both 2-port and 4-port configurations.

These VNAs provide:

• Dynamic range up to 140 dB
• Frequency resolution of 0.1 Hz
• High output power
• Fast measurement speed
• Multi-channel measurements
• Multi-window display capabilities
• High-performance calibration algorithms
• Electronic calibration support (E-Cal)

Millimeter-Wave and THz Vector Network Analysis

For advanced millimeter-wave and terahertz applications, Ceyear offers the frequency extender solutions, allowing frequency extension from microwave frequencies up to 750 GHz and beyond.

These systems are designed for:

• 5G FR2 and future 6G research
• Automotive radar
• Satellite payload development
• Aerospace applications
• Material characterization
• Terahertz research
• Semiconductor device characterization

Available Measurement Configurations

Ceyear vector network analyzers support multiple measurement architectures:

2-Port Vector Network Analyzers

Ideal for:

• Filters
• Amplifiers
• Mixers
• Antennas
• Cables
• Connectors
• RF modules

4-Port Vector Network Analyzers

Suitable for:

• Differential measurements
• Balanced devices
• MIMO systems
• Multiport filters
• Antenna arrays
• Power divider characterization
• Radar subsystem testing

On-Wafer Measurement Solutions

Ceyear provides complete on-wafer measurement systems for:

• MMIC characterization
• Semiconductor devices
• GaN devices
• LNA testing
• Power amplifier characterization
• RFIC validation

Comprehensive Measurement Capabilities

Ceyear VNAs support a wide range of RF and microwave measurements:

• S-parameters
• Transmission measurements
• Reflection measurements
• Group delay
• Phase measurements
• Smith chart analysis
• Polar display
• Time-domain analysis
• Distance-to-fault (DTF)
• Differential measurements
• Mixed-mode S-parameters
• Material characterization

Advanced Calibration Techniques

Accurate calibration is essential for high-quality vector network measurements. Ceyear VNAs support:

• Response calibration
• Enhanced response calibration
• Full one-port calibration
• Full two-port calibration
• Response isolation
• TRL calibration
• Electronic calibration (E-Cal)
• User-defined calibration kits

Applications of Ceyear Vector Network Analyzers

Wireless Communications

• 4G LTE
• 5G NR
• 6G research
• WLAN
• IoT
• Base station development

Aerospace and Defense

• Radar systems
• Electronic warfare
• Satellite communications
• RF payload testing
• Aerospace electronics
• Missile systems

Semiconductor Industry

• RFIC testing
• MMIC characterization
• On-wafer measurements
• Device modeling
• Process validation

Research and Education

• Universities
• Research institutes
• Material science
• THz research
• Quantum technology
• Scientific laboratories

Modern Hardware and Software Platform

Ceyear VNAs feature modern hardware architecture including:

• High-resolution touch displays
• Multi-window operation
• Multi-channel measurements
• High-speed data processing
• USB interfaces
• Gigabit Ethernet
• GPIB support
• External display outputs
• SCPI programming support

Why Choose Ceyear Vector Network Analyzers?

Ceyear vector network analyzers combine:

• Frequency coverage up to 110 GHz
• Frequency extension capability up to 750 GHz
• Dynamic range up to 140 dB
• 2-port and 4-port architectures
• Advanced calibration techniques
• On-wafer measurement capability
• High measurement accuracy
• Modern software environment
• Competitive acquisition cost

Conclusion

For engineers working in wireless communications, radar systems, satellite communications, aerospace, electronic warfare, semiconductor testing, and scientific research, Ceyear vector network analyzers provide one of the most compelling solutions available on today's RF and microwave test equipment market.

Compared with premium manufacturers such as Rohde & Schwarz, Keysight and Anritsu, Ceyear vector network analyzers offer an outstanding combination of measurement performance, frequency coverage, dynamic range, functionality, expandability, and affordability. For many RF, microwave, millimeter-wave, and research applications, Ceyear delivers the best price-to-performance-to-feature ratio available today, making it an excellent choice for both industrial and advanced R&D environments.
