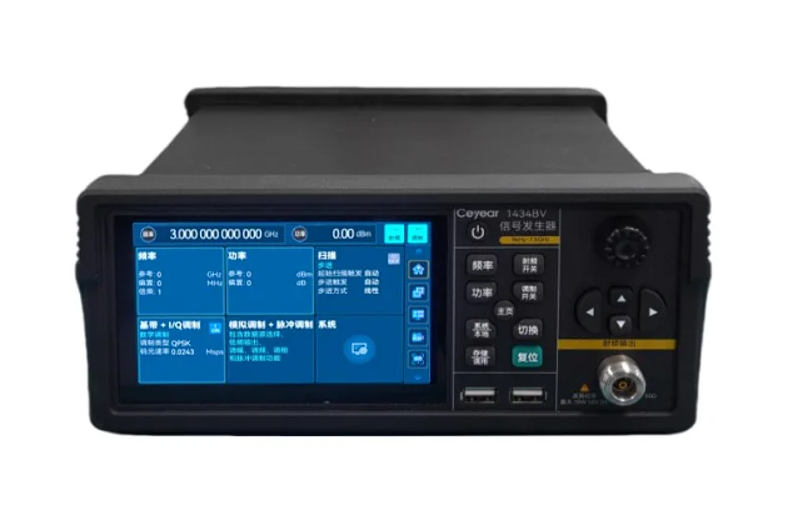

The 1434AV/BV is an economical vector signal generator with a frequency range of 9kHz to 3GHz/6GHz/7.5GHz and a maximum modulation bandwidth of 240MHz. It features a built-in baseband signal generator that supports real-time generation of over 30 common digital modulation formats, including PSK, QAM, FSK, and MSK. It also features arbitrary waveform playback and, when used with signal simulation software, can generate signals for various communication protocols, including 5GNR, LTE, WCDMA, GSM, WLAN, and Bluetooth.
Its narrow 2U chassis weighs as little as 4kg, offering excellent portability and compactness, meeting the cost-effective testing needs of various fields and scenarios, including communications, industrial electronics, and universities.
Main Features
- Frequency range of 9kHz to 3/6GHz and 7.5GHz
- Large dynamic range power output
- Standard 120MHz modulation bandwidth. The Maximum modulation bandwidth can be 240MHz
- Comes standard with real-time generation of over 30 standard digital modulation patterns
- Supports download and playback of user-defined simulation data, capable of generating signals for various communication protocols, including 5G NR, LTE, WCDMA, GSM, WLAN, and Bluetooth
- Excellent vector modulation performance, with an EVM of 0.5% (5G NR, 3.5GHz, measured value)
- Standard features include frequency modulation, phase modulation, amplitude modulation, and pulse modulation
- Reverse power burnout protection, DC-50V, AC-50W (1GHz)
- Supports cross-platform client and browser access control
- Supports USB power meter for test display and power flatness calibration
- Supports SCPI command recording and generates programmable example projects in Qt, C#, and C++
- Supports programmable control via USB and LAN interfaces

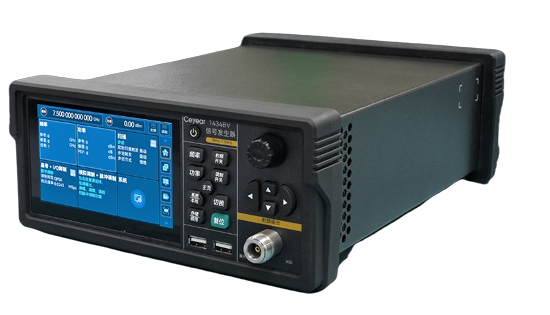

- 2U narrow chassis design allows for side-by-side deployment of two units in a standard 19-inch cabinet. Weighing as little as 4kg, it's easy to move
