Product Overview

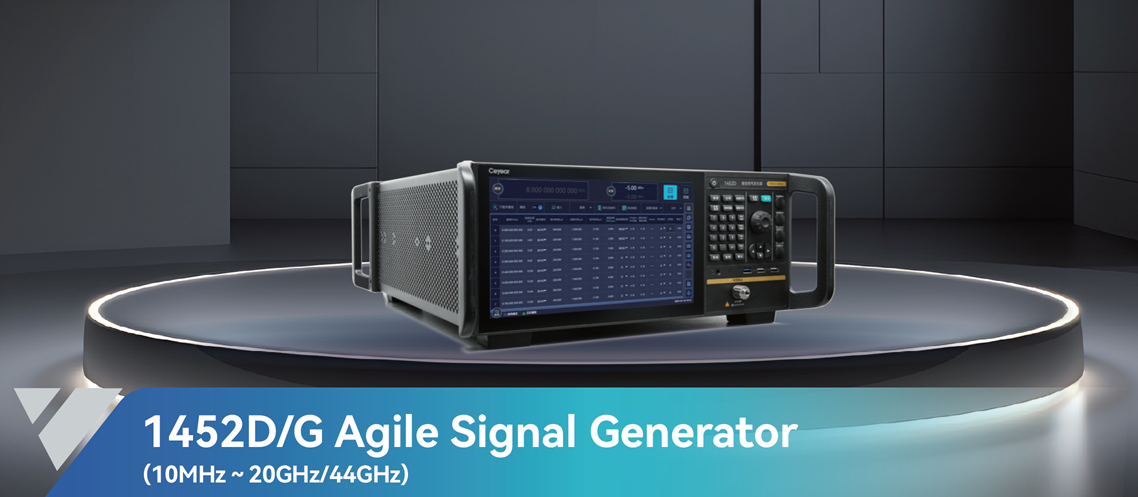

The 1452D / 1452G Agile Signal Generator adopts a design that combines Direct Digital Synthesis (DDS) technology with Direct Analog Synthesis (ADS) technology, enabling full-band frequency, power, and modulation agility. Its frequency coverage ranges from 10 MHz to 20 GHz/44 GHz, with a maximum power agility range of 90 dB, switching speed ≤150 ns, and a maximum modulation bandwidth of 2 GHz.
This instrument offers high frequency resolution, low phase noise, and excellent spectral purity, and supports frequency modulation (FM), phase modulation (PM), amplitude modulation (AM), pulse modulation, vector modulation, multi-unit phase coherence, multi-parameter sequence playback, as well as PDW playback functions. The product is equipped with standard interfaces such as GPIB, LAN, USB, and DP, and can be operated with external keyboard and mouse. It features an 11.6-inch large LCD screen, providing intuitive and rich information display, with flexible and convenient operation. It meets the testing requirements for agile frequency signal stimulation and signal simulation, providing support for the development, production, and maintenance of systems and products in related fields.
Main Features
- Full frequency band agility from 10MHz~20GHz/44GHz for frequency, power, and multiple parameters modulation
- High-speed frequency and power agility of 150ns
- Large dynamic power agility of 90dB

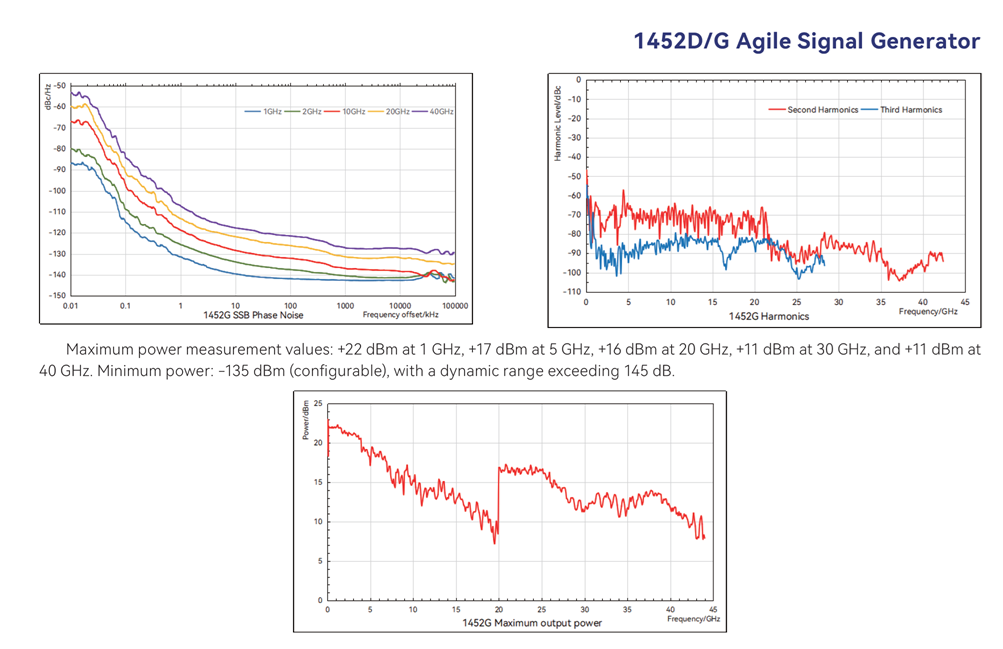

- Low phase noise of -127dBc/Hz (typical value, 10GHz carrier, 10kHz offset)
- FM, φM, AM, Pulse, digital modulation, multi-tone modulation, intra-pulse modulation, and arbitrary waveform modulation types
- Maximum RF modulation bandwidth of 2GHz, with flexible options for 250MHz/500MHz/1GHz/2GHz bandwidth
- Three selectable operation modes: continuous wave, sequence, and PDW stream
- Supports multiple coherent outputs
- Flexible large-screen touch operation
- Graphical menu, easy to use
Ultra wideband Frequency agile

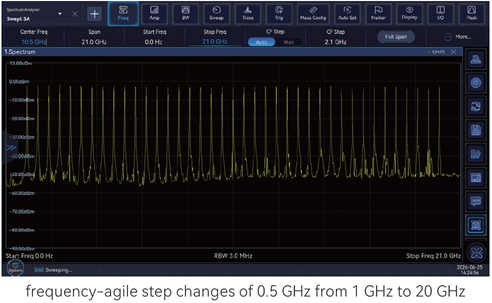

The 1452D / 1452G agile signal generator can provide arbitrary frequency agility across the full frequency range of 10 MHz to 20 GHz/44 GHz, meeting the excitation requirements for ultra-wideband frequency-agile signals in frequency-agile guided systems, and can also provide corresponding analog signals.
Ultra high-speed frequency and power agile output

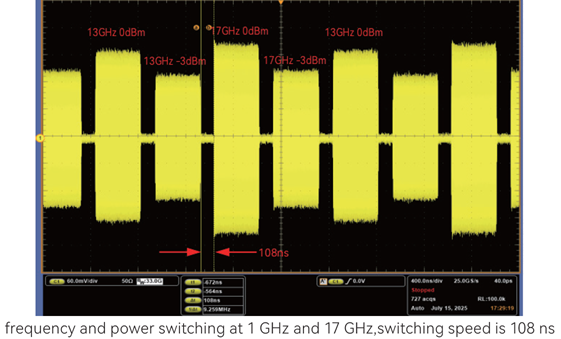

The 1452D / 1452G frequency-agile signal generator can provide frequency and power agility with a switching speed ≤150ns, meeting the speed testing needs of various agile frequency system equipment.

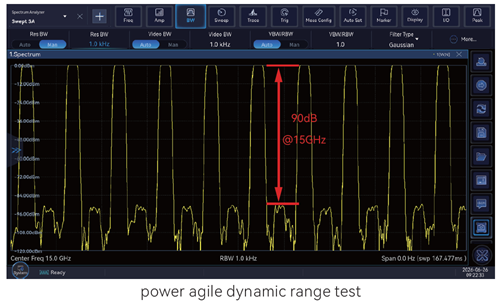

Excellent power agile dynamic range
The 1452D / 1452G agile signal generator can achieve a maximum dynamic range of 90 dB in power-agile signal output, with a power agility time of ≤150 ns. It can simulate the differences in echo power caused by factors such as range, target characteristics, and RCS fluctuations in real battlefield environments, and can also simulate signal amplitude variations caused by changes in communication channels, thereby providing you with signal excitation and electromagnetic environment simulation that are closer to reality.
High-Performance Modulated Output

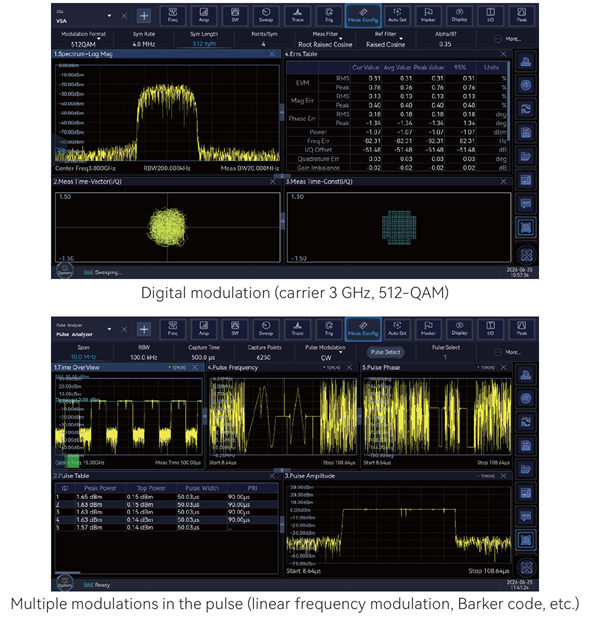

The 1452D / 1452G agile signal generator features high-performance modulation capabilities, supporting FM, φM, AM, Pulse, digital modulation, multi-tone modulation, intra-pulse modulation, arbitrary waveform, and other modulation functions, providing a comprehensive solution for high-quality signal simulation and excitation.
2GHz RF modulation bandwidth, easily handling wideband testing challenges

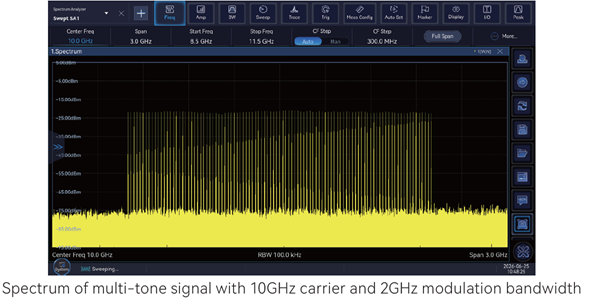

The 1452D / 1452G agile signal generator can provide a maximum RF modulation bandwidth of 2 GHz. Depending on different application scenarios, it supports flexible selection of 250 MHz, 500 MHz, 1 GHz, and 2 GHz bandwidths. Its outstanding modulation bandwidth performance can easily meet testing challenges.
Outstanding performance makes testing simpler and more precise
A cleaner signal ensures that you are no longer troubled by interference signals when testing microwave and millimeter-wave components and systems.
High-precision phase control, supporting multi-device coherence

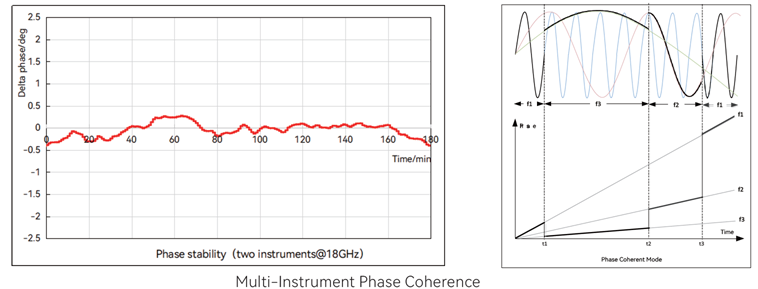

The 1452D / 1452G agile signal generator supports high-precision phase control with 0.1° steps, continuous phase and phase coherence control, as well as multi-unit coherent network control. Through modular assembly and reconfiguration, it can flexibly achieve coherent networking with up to 128 channels, facilitating scenario-level testing for large-scale array receivers. The amplitude, phase, and time differences between channels can be adjusted with high precision, and the inter-channel consistency and stability are excellent. It can accurately simulate the direction of incoming waves and supports Angle of Arrival (AoA) testing.
Completely Upgraded Human-Computer Interaction
It features an 11.6-inch high-resolution touchscreen that clearly displays key parameters and instrument status, paired with a signal flow diagram guide interface to make the display more intuitive and the interaction more user-friendly.
It supports user-customizable menus, allowing you to tailor a personalized control interface based on testing habits, enabling multi-functional operations in a single window and avoiding the hassle of deep menus and repeated searching.
You can also access and control it via a web browser, with the instrument’s status refreshing in real-time. It supports one-click export of recorded SCPI commands and automatically generates VS (C, C#), Qt, Matlab, and LabWindows/CVI programmable demo projects,
making programming easier.
The instrument offers additional expansion interfaces like GPIB, LAN, and USB for data transfer, remote control, and firmware upgrades.
Typical Applications

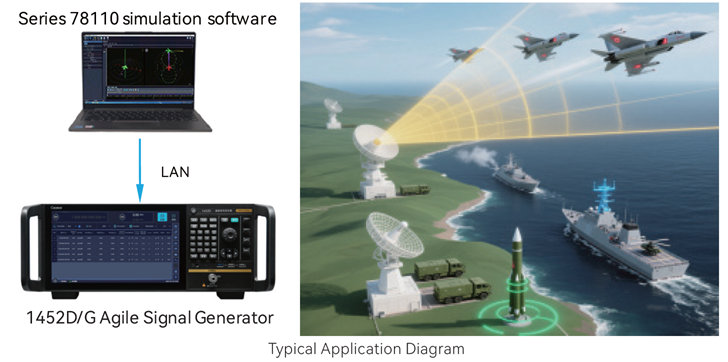

Radar Signal Simulation
The 1452D / 1452G agile signal generator, combined with the 78110A radar signal simulation software, can simulate various radar signals. It can generate pulse train radar signals with intra-pulse modulation, simulate pulse repetition frequency radar signals, and set the envelope shape of pulses. The intra-pulse modulation methods include linear frequency modulation, nonlinear frequency modulation, triangular frequency modulation, BPSK, QPSK, Barker code, and others. PRF（Pulse repetition frequency） types include PRF staggering, PRF jitter, and PRF sliding. Pulse envelopes mainly include rectangular, trapezoidal, raised cosine, root raised cosine, and exponential
shapes.
Radar Scenario Simulation
The 1452D / 1452G agile signal generator supports high-density PDW data stream playback at 6 million pulses per second. When combined with the 78110B radar scenario simulation software, it can transform a standard instrument into a flexible and versatile complex electromagnetic environment signal simulator, enabling laboratory-based testing of electromagnetic environments that would normally be conducted in the field.
The 78110B radar scenario simulation software can simulate large-scale, multi-radar dynamic electromagnetic environment signals by setting relevant characteristic parameters such as frequency, amplitude, pulse width, repetition frequency, arrival time, arrival angle, and intra-pulse modulation. It can also drive a single or multiple agile signal generators via network interfaces to simulate radar radiation signals, meeting user requirements for constructing radar signal environments and conducting hardware-in-the-loop simulation testing of array receiving equipment in a laboratory setting.
