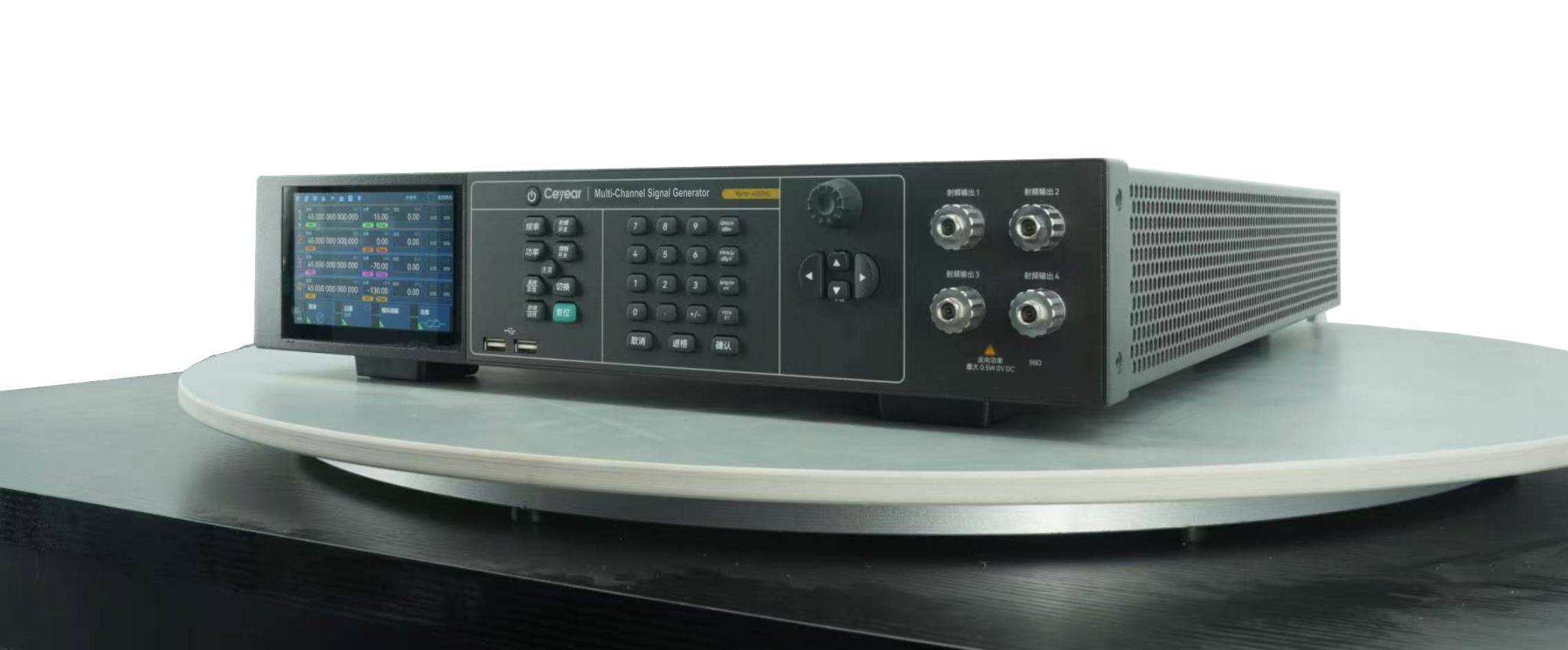

1434 multi-channel signal generator is a cost-effective and highly integrated microwave signal generator with a frequency range covering 9kHz to 20GHz/45GHz. It supports up to four channels, each with independently adjustable frequency and power, enabling multi-channel coherent signal output.
The series devices feature rich modulation capabilities, covering various modulation styles including frequency modulation, phase modulation, amplitude modulation, and pulse modulation. Achieving excellent performance in a compact space, it meets the testing needs of various fields such as communications, industrial electronics, and universities.
1434DB - Multi-channel Signal Generator 9kHz - 20GHz, Dual Channels
1434DC - Multi-channel Signal Generator 9kHz - 20GHz, Three Channels
1434DD - Multi-channel Signal Generator 9kHz - 20GHz, Four Channels
1434GB - Multi-channel Signal Generator 9kHz - 45GHz, Dual Channels
1434GC - Multi-channel Signal Generator 9kHz - 45GHz, Three Channels
1434GD - Multi-channel Signal Generator 9kHz - 45GHz, Four Channels
Main Features
- Frequency coverage 9kHz - 20GHz/45GHz
- Wide dynamic range power output
- High accuracy power output, measured value <0.5dB
- Excellent spectral purity, phase noise -123dBc/Hz (10GHz@10kHz, measured value)
- Standard configuration includes multiple modulation functions such as frequency modulation, phase modulation, amplitude modulation, and pulse modulation
- Supports cross-platform browser access control
- Supports USB power meter for testing, display, and power flatness calibration compensation
- Supports SCPI command recording, capable of generating programmable sample projects in Qt, C#, C++, etc.
- Supports USB and LAN interface programmable control
Excellent Spectrum Purity
1434 multi-channel signal generator outputs a clean signal. Single-sideband phase noise is better than -122dBc/Hz (10GHz carrier, 10kHz frequency offset, low noise option), 5GHz non-harmonic noise (low noise option) is less than -80dBc, and measured 4GHz-45GHz harmonic noise is less than -70dBc.

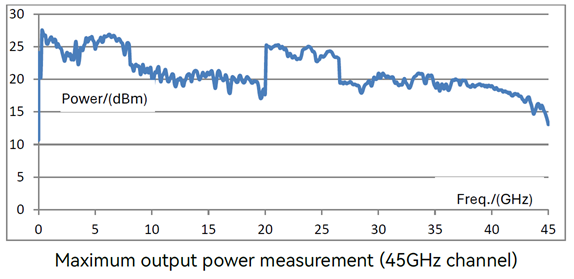

Wide dynamic range, high-accuracy output power

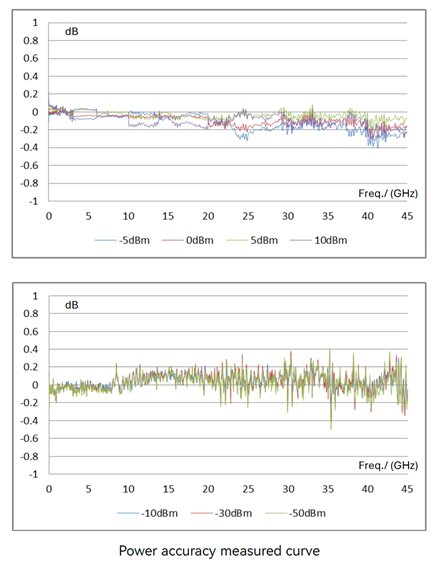

The 1434 multi-channel signal generator has a minimum output power of -120dBm. The maximum output power is +25dBm (1GHz), +20dBm (20GHz channel), and +13dBm (45GHz channel), with power accuracy <0.5dB (measured value).

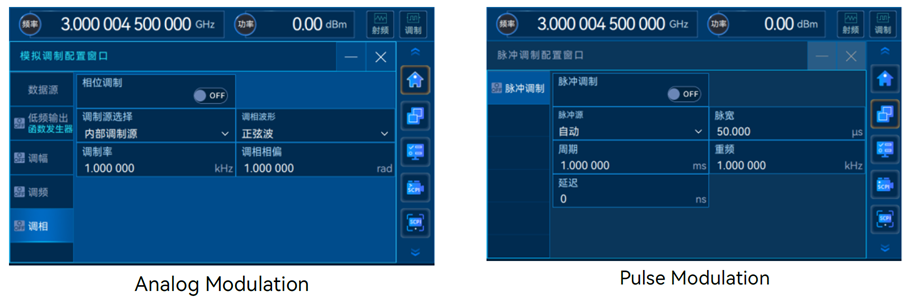

Rich Modulation Functions
It comes standard with multiple modulation styles, including frequency modulation, phase modulation, amplitude modulation, and pulse modulation. Frequency modulation, phase modulation, and amplitude modulation support a variety of modulation waveforms such as sine wave, square wave, triangle wave, sawtooth wave, noise, swept sine, and double sine; pulse modulation supports complex pulse modulation functions such as double pulse, pulse train, staggered repetition frequency, jittered repetition frequency, and slip repetition frequency.
Supports USB power measurement and power flatness calibration and compensation
The 1434 multi-channel signal generator supports power probes from multiple manufacturers, including CETI, for testing and display, and can use the power probes for its own power flatness calibration and compensation.
Supports SCPI command recording
The 1434 series signal generators support SCPI command recording, automatically generating programmable example projects in Qt, C#, and C++, making programmable control easier.
