CHAPTER 1. EXECUTIVE SUMMARY

1.1 Purpose of this Comparison

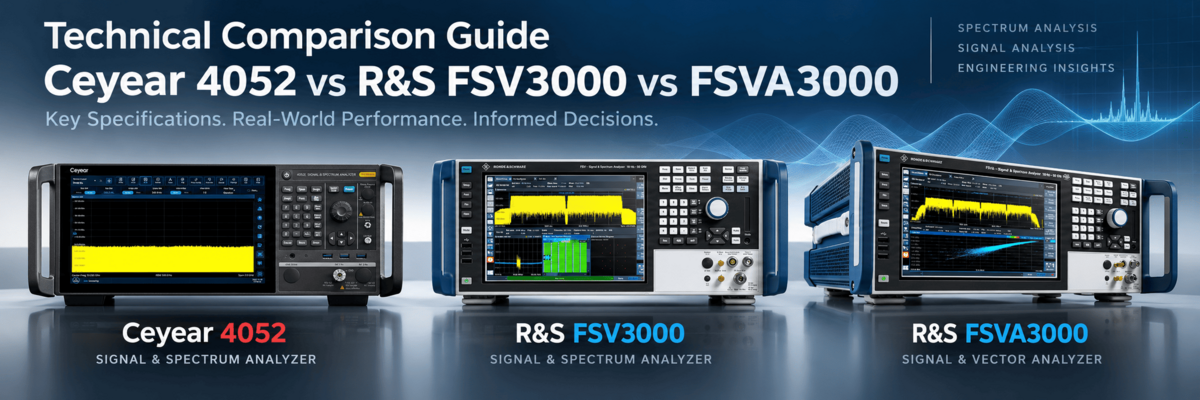

This document provides a detailed technical comparison of the Ceyear 4052 Series, Rohde & Schwarz FSV3000 Series, and Rohde & Schwarz FSVA3000 Series signal and spectrum analyzers.

The comparison is based exclusively on the official technical specifications published by Ceyear Technologies and Rohde & Schwarz. It is intended to assist engineers, system integrators, laboratory managers and procurement specialists in selecting the most appropriate instrument for research, development, manufacturing, wireless communications, aerospace and defense applications.

1.2 Product Positioning

Although all three instrument families belong to the modern signal and spectrum analyzer category, they target different performance levels and application requirements.

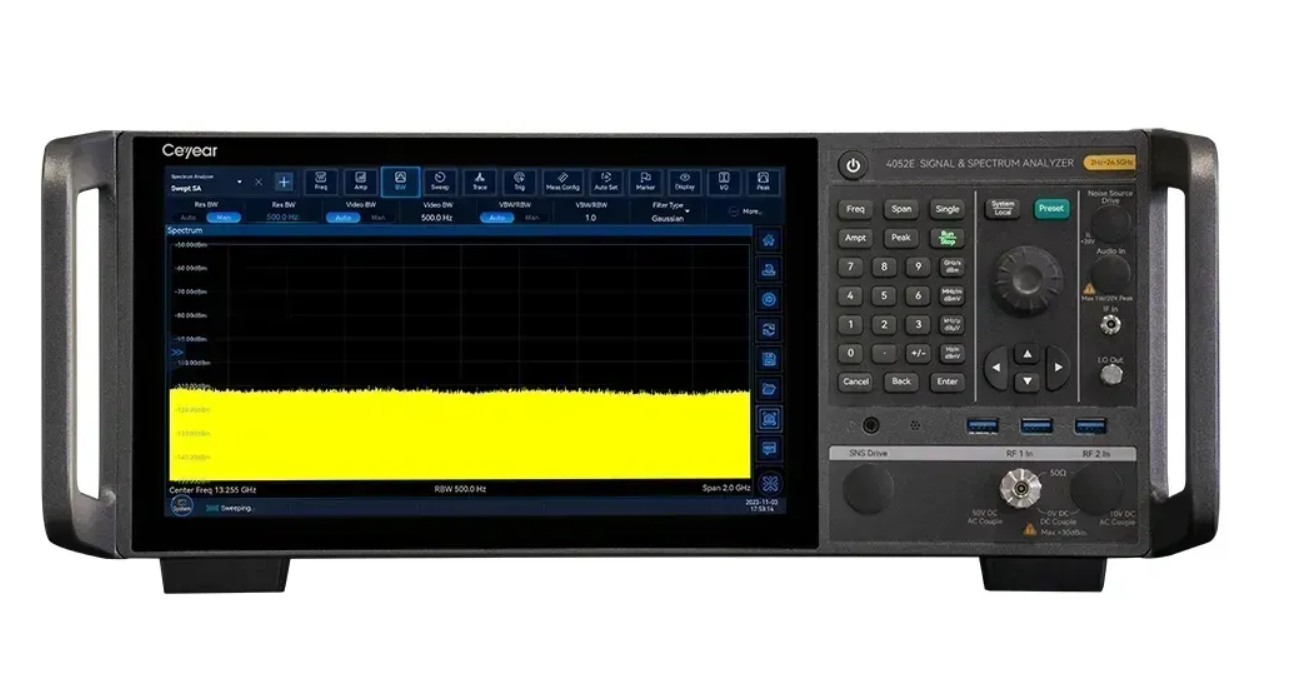

Ceyear 4052 Series

The Ceyear 4052 Series is positioned as a high-performance multifunctional signal and spectrum analyzer combining wide instantaneous analysis bandwidth, advanced real-time spectrum analysis, comprehensive vector signal analysis capabilities and modern high-speed data interfaces.

Compared with traditional mid-range spectrum analyzers, the 4052 Series places particular emphasis on broadband signal analysis, high-speed I/Q recording, radar applications, wireless communications and electronic warfare systems. With analysis bandwidth options up to 1.2 GHz, integrated 10 Gigabit Ethernet, optical I/Q interfaces and real-time recording capabilities, the platform is designed for demanding broadband measurement applications.

Rohde & Schwarz FSV3000 Series

The R&S FSV3000 Series is a versatile mid-range signal and spectrum analyzer intended for general-purpose RF measurements. It provides excellent measurement accuracy, comprehensive measurement applications and a mature software ecosystem while maintaining competitive cost and high reliability. The platform is particularly suitable for production testing, RF laboratories, EMC pre-compliance measurements and wireless communication development where extremely high dynamic range or ultra-wide analysis bandwidth are not primary requirements.

Rohde & Schwarz FSVA3000 Series

The R&S FSVA3000 Series represents the high-performance platform within the FSV family.

Its architecture is optimized for applications requiring extremely low phase noise, superior dynamic range, excellent sensitivity and high linearity. These characteristics make the FSVA3000 particularly suitable for oscillator characterization, phase noise measurements, high-performance receiver testing, aerospace systems and advanced research laboratories. The platform also supports analysis bandwidths up to 1 GHz through optional hardware configurations.



1.3 Overall Technical Positioning

Product Primary Positioning Typical Users
Ceyear 4052 Broadband signal analysis platform Defense, EW, radar, satellite communications, 5G/6G research, broadband RF laboratories
R&S FSV3000 General-purpose RF signal & spectrum analyzer Production testing, education, service laboratories, EMC, wireless communications
R&S FSVA3000 High-performance RF analyzer R&D laboratories, metrology, phase noise measurements, receiver characterization, aerospace



1.4 Key Technical Conclusions

Ceyear 4052 Series

The Ceyear 4052 demonstrates a strong emphasis on broadband signal analysis. Its support for up to 1.2 GHz instantaneous analysis bandwidth, integrated 10 Gigabit Ethernet, optical I/Q interfaces and high-speed recording capabilities makes it particularly attractive for modern radar, electronic warfare, satellite communication and wideband wireless signal analysis applications.

Rohde & Schwarz FSV3000 Series

The FSV3000 offers an excellent balance between performance, measurement functionality and cost. It is particularly well suited for general RF testing, production environments and communication system development where extremely high RF performance is not the primary selection criterion.

Rohde & Schwarz FSVA3000 Series

The FSVA3000 delivers the highest RF performance among the three analyzers. It provides superior phase noise, sensitivity, dynamic range and linearity, making it the preferred solution for precision RF characterization, oscillator measurements and demanding research applications.

1.5 Feature Matrix

Table 1. Executive Feature Matrix

Feature Ceyear 4052 R&S FSV3000 R&S FSVA3000
Frequency range up to 50 GHz ✔ ✔ ✔
Frequency extension above 50 GHz — — ✔ (54 GHz option)
2 Hz minimum frequency (standard) ✔ — ○*
Phase noise optimized architecture ✔ ○ ✔✔
Ultra-low phase noise option — ✔ ✔
Displayed Average Noise Level (DANL) ✔✔ ✔ ✔✔
Dynamic range ✔✔ ✔ ✔✔✔
Instantaneous analysis bandwidth >1 GHz ✔ (1.2 GHz) — ○ (1 GHz option)
Real-Time Spectrum Analysis ✔ ✔ ✔
Wideband Real-Time (>200 MHz) ✔ — ✔
High-speed I/Q recording ✔ ✔ ✔
10 Gigabit Ethernet ✔ — ○
Long-duration broadband recording ✔✔ ✔ ✔✔
Radar signal analysis ✔✔ ○ ✔✔
Pulse analysis ✔ ✔ ✔
5G NR signal analysis ✔ ✔ ✔
LTE / NB-IoT / WCDMA ✔ ✔ ✔
WLAN analysis ✔ ✔ ✔
Analog demodulation ✔ ✔ ✔
EMI measurements ○ ✔ ✔
Vector Signal Analysis ✔ ✔ ✔
Phase Noise measurement application ○ ○ ✔✔
Production test suitability ✔ ✔✔ ✔
General-purpose RF laboratory ✔ ✔✔ ✔✔
Electronic Warfare (EW) applications ✔✔✔ ○ ✔✔
Satellite communications ✔✔ ✔ ✔✔
High-end RF research ✔ ✔ ✔✔✔



Legend
•    ✔✔✔ – Industry-leading capability
•    ✔✔ – Excellent capability
•    ✔ – Fully supported
•    ○ – Available with optional hardware/software
•    — – Not available
* Available on FSVA3000 only with the optional ultra-low phase noise hardware (B710).



Continue Reading

This article is part of the Technical Comparison Guide: Ceyear 4052 vs. R&S FSV3000 vs. R&S FSVA3000. Continue with the following chapters to explore each performance aspect in detail:
